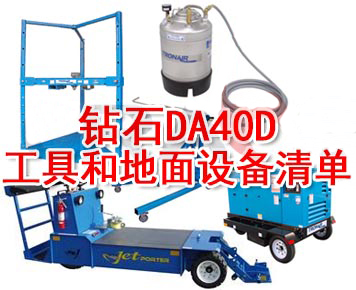

Diamond Aircraft DA40 D/钻石DA40D/Tool And Equipment List/工具和地面设备清单 |
| LIFTING AND SHORING (ATA-7) |
| 02-0222C0111 Main Jack (2 ton/1.8 metric ton) 2 required |
| 02-7947C0000 Portable Tripod Jack Proof Load Tester (CE) |
| 03-4006-0000 Tailstand |
| TBD Adapter Kit |
| TOWING AND TAXIING (ATA-9) |
| JP30 Electric Towbarless Tug (30,000 lb capacity) |
| JP30L Electric Towbarless Tug (30,000 lb capacity) long |
| PARKING AND MOORING (ATA-10) |
| 99-9010-6000 Wheel Chocks (8 in/20 cm) long |
| SERVICING (ATA-12) |
| ENGINE OIL (MIL-PRF-23699) |
| 06-5009-6800 Engine Oil Service Unit (2.5 gal/9.5 l) |
| 06-5010-6800 Engine Oil Service Cart (6 gal/28 l) (CE) |
| 06-5022-6800 Engine Oil Service Unit (2 gal/7.6 l) |
| HYDRAULIC FLUID (MIL-PRF-5606) |
| 06-4005-0511 Hydraulic Component Test Unit (2 qt/1.9 lt) & (3,000 psi/207 lt) |
| 06-4035-0500 Hydraulic Component Test Cart (8 gal/30 l) & (4,000 psi/276 bar) |
| 06-5022-6500 Hydraulic Service Unit (2 gal/7.6 l) & (200 psi/13.8 bar) |
| 06-5042-0500 Hydraulic Service Cart (8 gal/30 l) & (200 psi/13.8 bar) |
| NITROGEN |
| 12-3104-0000 Four Bottle Carts (bottle transport cart only, painted blue) (CE) |
| 18-4201-1010 Nitrogen Booster (Maximum 4,000 psi/276 bar) |
| K-1225 Regulator Kit (operates air pump at remote location) |
| 18-4208-0010 Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE) |
| 18-4303-0000 Four Bottle Service Cart (mainfold, high & low pressure regulators) |
| 18-4315-0000 Tiltable Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE) |
| 18-4318-0000 Tiltable Four Bottle Service Cart (mainfold, high & low pressure regulators) |
| K-3706 Coupling, High Pressure Hose (CE) |
| PC-1107 300 cu ft certified Nitrogen Bottle |
| OXYGEN (All painted surfaces are Oxygen Green) |
| 12-3104-0000 Four Bottle Carts (bottle transport cart only, painted blue) (CE) |
| 20-4500-7000 Oxygen Booster (Maximum 2,200 psi/152 bar) (CE) |
| 20-4502-6000 Oxygen Service Regulator (0-2,500 psi/0-172 bar) |
| 20-4504-7000 Four Bottle Cart (manifold, high & low pressure regulator) |
| 20-4505-7000 Four Bottle Service Cart (booster, mainfold & high pressure regulator) (CE) |
| 20-4523-0000 Tiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE) |
| 20-4525-0000 Tiltable Four Bottle Service Cart (manifold & high pressure regulator) |
| PC-1006 1/4 JIC Flare, Mates with 10089-3 3/8-24 UNF-2B |
| PC-1124 200 cu ft certified Oxygen bottle - green |
| ELECTRICAL POWER (ATA-24) |
| 11-2820-0000 Tier 4, 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE) |
| 112820C1T3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE) |
| 112820CS1T3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE) |
| 112820CST3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE) |
| 112820CT3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE) |
| 11-6602-1000 Battery Cart (24 vdc, 1,800 amp peak) |
| 11-6610-6000 Battery Charger/Analyzer (NiCad) |
| 92-0552-9000 Battery Charger (60 Hz) |
| 92-0552-9001 Battery Charger (50 Hz) |
| FUEL (ATA-28) |
| 07-3000-1921 Fuel Transfer Cart (20 gpm/78 lpm) |
| 07-3006-6900 Fuel Test Tool (1 qt/0.95 lt) (short) |
| LANDING GEAR (ATA-32) |
| 14-6801-0120 Tire Bead Breaker |
| Required, ONE each Main & Nose Adapter Rings: |
| Z-1063-06 Tire Adapter Ring, Nose (17.5x6.25) 500 |
| Z-1063-07 Tire Adapter Ring, Main (19.5x6.75) 600 |
| 14-6802-6000 Strut Deflator |
| 14-6804-6000 Nitrogen Service Regulator (2-2,500 psi/172 bar) |
| 14-6805-6010 Strut Service Gauge (3,000 psi/207 bar) |
| 14-6806-6011 Tire Pressure Gauge (300 psi/20.7 bar) (CE) |
| 14-6807-6011 Tire Pressure Gauge (300 psi/20.7 bar) Shop Air (CE) |
| 14-6808-6000 Nitrogen Service Regulator (0-500 psi/34.5 bar) |
| 14-6892-6000 Tire Deflator |
| FUSELAGE (ATA-53) |
| 04-6028-0121 Universal Utility Lift (500 lb/227 kg) Capacity |
| K-3057 Crane Hook Attachment Kit |
| 04-6150-0120 Hydraulic Utility Crane (4,000 lb/1,814 kg) Capacity (CE) |
| Optional, Select from the following to meet your specific needs: |
| K-2012 Gooseneck Boom Kit |
| K-2013 Pneumatic Pump Kit |
| K-2953 Hand Winch Kit |
| 更多产品型号选择请咨询工作人员 |
